Multi-Colour Labels |
Full colour labels involve the full CMYK colour spectrum with spot colours and halftoning and at least four plates to achieve a high quality graphic transfer to a substrate.
This is similar to a colour dot matrix printer developing a graphic.
The provided graphic will be “ripped” into the CMYK components by software for development of the separate plates or colours for digital printing.
Separate colours (Spot Colours) such as white, gold, silver or a specific Pantone colour that is difficult to achieve in the graphic with half– toning can be applied to achieve a specific affect on the label |
  |

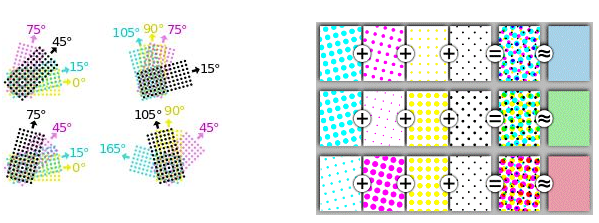

Three examples of modern colour halftoning with CMYK separations
From left to right:
the cyan separation,
the magenta separation,
the yellow separation,
the black separation,
the
halftone pattern and
finally how the human eye would observe the combined halftone pattern from a sufficient distance. |

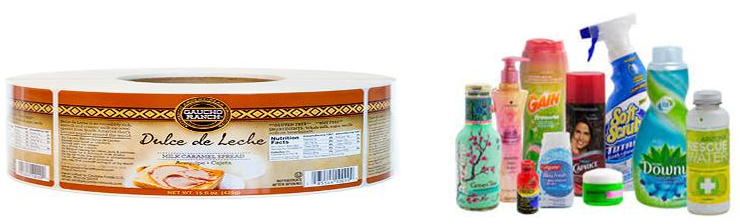

| Full colour CMYK Label, printed, die cut, with the matrix removed packaged and ready for delivery to the customer for machine application to a product. |
 |
|
|
